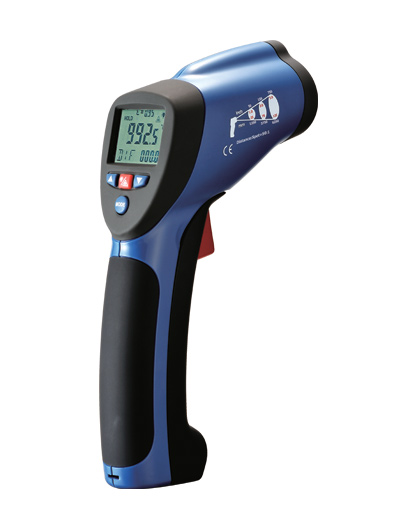

8867H/8868/8868H/8869/8869H Series Professional High Temperature Infrared Thermometers
8867H series provide much faster, easy and accurate readings for most surface temperature measurements with dual laser pointers.

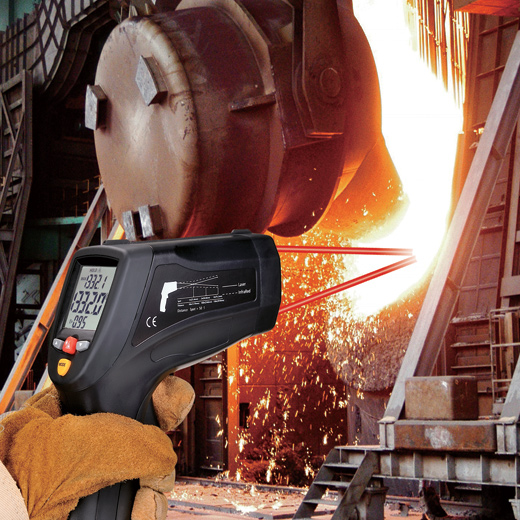

Two laser points converge to a single spot when the unit is at the optimal distance from the object being measured.
Features:
1. User selectable ℃ or ℉
2. Dual laser targeting
3. Automatic data hold
4. White backlit LCD display
5. Overrange indication
6. High temperature
7. Max, Min, DIF, AVG record
8. High/Low alarm, trigger lock
9. Adjustable Emissivity
10. Reading memory (8868/8869/8868H/8869H)
11. Type K input
12. USB interface
Specifications:
|
|
8867H |
8868 |
8869 |
8868H |
8869H |
|
IR Temp. Range |
-50℃ to 1650℃ -58℉ to 3002℉ |
-50℃ to 1200℃ -58℉ to 2192℉ |
-50℃ to 1600℃ -58℉ to 2912℉ |
-50℃ to 1850℃ -58℉ to 3362℉ |
-50℃ to 2200℃ -58℉ to 3992℉ |
|
Response Time |
Less than 150ms |
||||
|
Resolution |
0.1° up 1000°， 1° over 1000° |
||||
|
Basic Accuracy (IR) |
±1.0% of reading |
||||
|
Optical Resolution |
30:1 (8867H), 50:1(8868/8869/8868H/8869H) |
||||
|
Emissivity |
Adjustable 0.10~1.0 |
||||
|
Type K Temp. Range |
-50℃ to 1370℃ / -58℉ to 2498℉ |
||||
|
Basic Accuracy (TK) |
±1.5% of reading |
||||
|
Readings memores |
99 (8868/8869/8868H/8869H) |
||||
|
Size (H*W*D) |
204mm*155mm*52mm |
||||
|
Weight |
320g |
||||
Accessories:
9V Battery, USB Cable, Tripod, Software, Type-K Temperature Probe，Carrying Case and Gift Box.
