Introduction

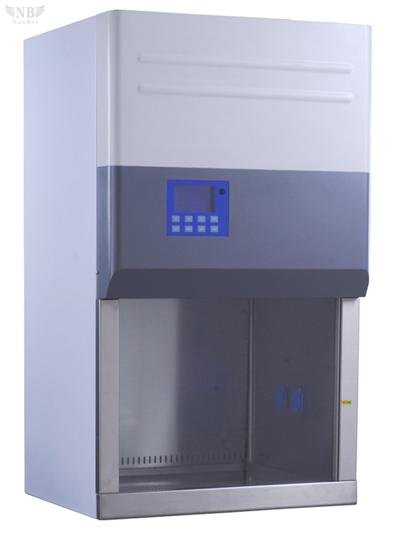

Model: 11231 BBC86
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
According to the performance criteria:
1.US Standard ANSI/NSF 49:2002
2.European Standard EN13469:2000
3.Chinese Standard YY0569-2005
Advantage:
1. Convenient to move
2. Work area surrounded by negative pressure
3. Timer function
4. LCD display
5. Filter life inquiry
6. Motored front window

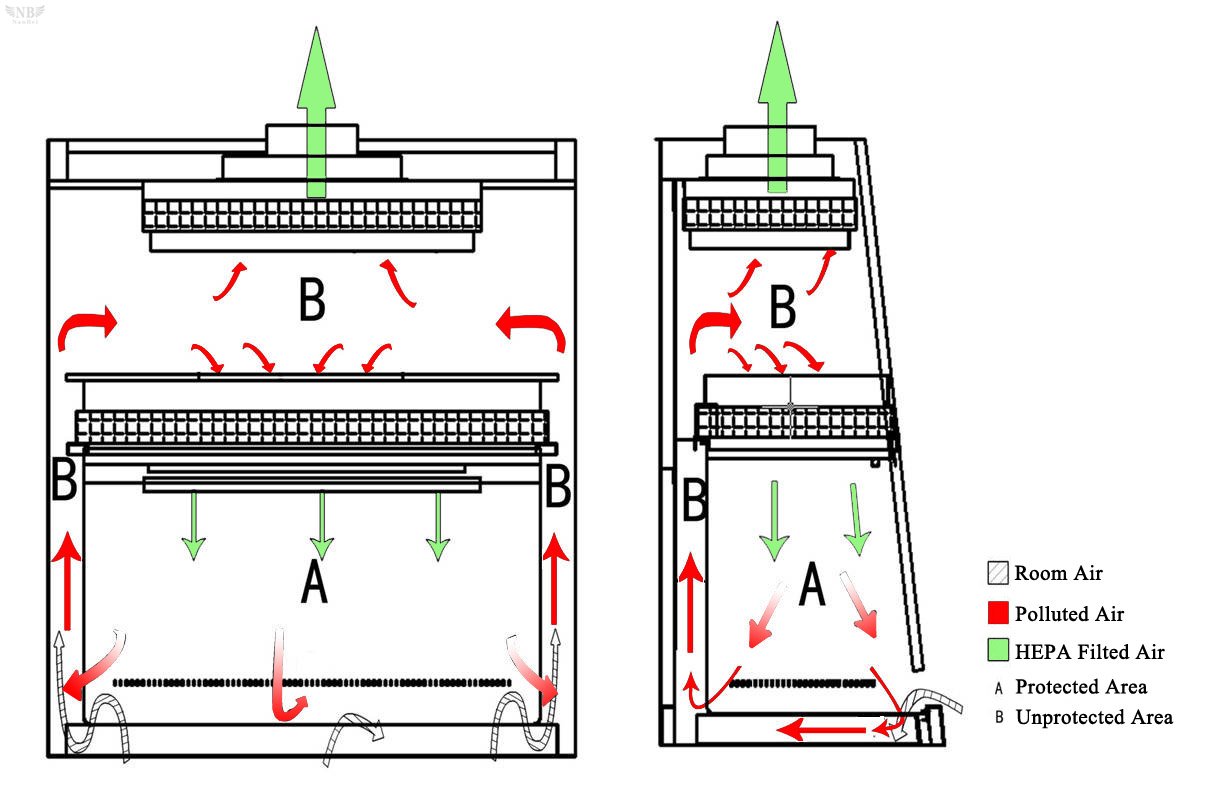

Air Pattern and Protected Area:
Parameter of BSC-700II A2 Biological Safety Cabinet:
|
Internal Size(mm) |
600*500*540 |
|
External Szie(mm) |
700*650*1230 |
|
Tested Opening |
Safety Height ≤ 200 mm |
|
Max Opening |
400 mm |
|
Inflow Velocity |
0.53 m/s |
|
Downflow Velocity |
0.33 m/s |
|
Filter |
Two HEPA filter 99.999% efficient(0.3 microns) |
|
Front Window |
Two-layer toughened glass > 5mm |
|
Noise |
≤ 65 dB |
|
UV Lamp |
15W× 1 |
|
Fluorescent Lamp |
40W× 1 |
|
Lighting(Lux) |
680 |
|
Power(W) |
800 |
|
Waterproof Socket |
2 |
|
Display |
LCD display |
|
Control System |
Microprocessor |
|
Airflow System |
70% air recirculation, 30% air exhaust |
|
Material |
Work zone interior is made of 304 stainless steel |
|
|
Body: Expoxy coated cold rolled steel |
|
Base Stand |
Height: 635mm |
|
caster Wheel |
Universal Wheel |
|
Electrical |
110~240V/50~60Hz (optional) |
|
Net Weight(kg) |
80 |
|
Gross Weight(kg) |
110 |
|
Package(mm) |
950× 850× 1430 |
|
Standard Configuration |
Body, UV lamp and Fluorescent Lamp |
|
Optional Accessory |
Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer |
