Product Introduction
1. Applications and Features:

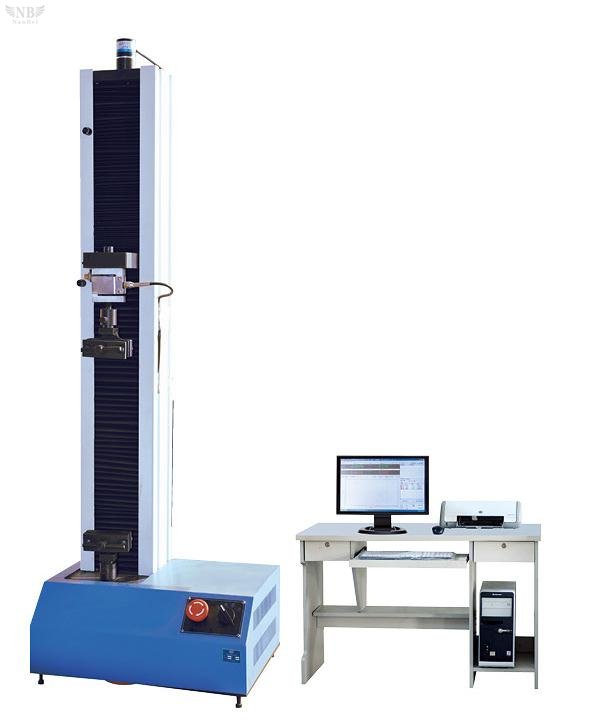

WDW microcomputer controlled electronic universal testing machine (ordinary type) use uprights and ball- screw to fix the upper beam and working table. It adopts interflow stepping motor and driver to drive ball-screw then make middle beam moving. Stretching, compressing, bending, peeling, shearing, tearing, puncturing, bursting and high or low temperature test according to standard such as GB, ISO, ASTM, JIS, DIN etc.
2. Main technical parameters:
|
Series
|
WDW microcomputer controlled electronic universal testing machine (ordinary type)
|
|||||
|
Model（kN）
|
0．2～5
|
02～10
|
5～50
|
100
|
||
|
Max. Capacity(KN)
|
0.2、0.5、1、2、5
|
0.2、0.5、1、2、5、10
|
5、10、20、50
|
100
|
||
|
Test force range (kN）
|
2%～100%FS
|
|||||
|
Measurement accuracy
|
±1%
|
|||||
|
Deformation measurement range
|
2%～100%FS
|
|||||
|
Deformation resolution(μm）
|
0.01mm
|
|||||
|
Large deformation measurement range（selective provide）
|
10～500mm
|
|||||
|
Accuracy of large deformation measurement
|
±1%
|
|||||
|
Accuracy of displacement
|
±1%
|
|||||
|
Speed adjustable range
（mm/min）
|
0.1～500
|
0.1～300
|
0.1～200
|
0.1～100
|
||
|
Speed control accuracy
|
±2%
|
|||||
|
Effective tensile space
|
0～650mm
|
|||||
|
Valid test width
|
____
|
340mm
|
380mm
|
400mm
|
||
|
Power(kw）
|
0.5kw
|
0.8kw
|
1.2kw
|
1.5kw
|
||
|
External dimensions(mm)
|
400×300×1200
|
620×370×1240
|
700×410×1680
|
760×480×1700
|
||
|
Weight(kg)
|
80
|
150
|
300
|
500
|
||
|
Standard configuration
|
Main engine，Lenovo computer, HP ink-jet printer, electronic extensometer, Manual control operation box, tensile fixture, compression fixture, bending fixture.
|
|||||
